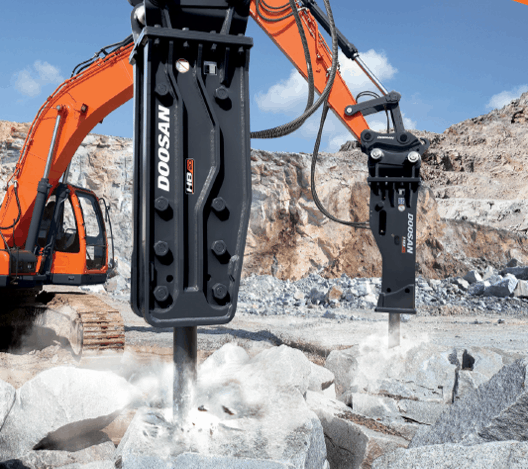

Hydraulic Breakers: HB Series

BROCHURE

The product brochure can be downloaded.

HB Series

REQUEST A QUOTATION

REASONS TO USE DOOSAN BREAKERS

FEATURES

MODELS & SPECIFICATIONS

HB03
Operating Weight(Kg) Housing 130
Top Mount 95
Side Mount 95
Tool Diameter (mm) 45
Operating Pressure (bar) 90-120
Flow (l/min) 20-40
Frequency (bpm) 700-1200
Carrier Weight (t) 1-3
HB04
Operating Weight(Kg) Housing 155
Top Mount 158
Side Mount 158
Tool Diameter (mm) 53
Operating Pressure (bar) 90-120
Flow (l/min) 25-50
Frequency (bpm) 600-1100
Carrier Weight (t) 2.5-4.5
HB06
Operating Weight(Kg) Housing 361
Top Mount 343
Side Mount 263
Tool Diameter (mm) 68
Operating Pressure (bar) 110-140
Flow (l/min) 40-70
Frequency (bpm) 500-900
Carrier Weight (t) 4-7
HB08
Operating Weight(Kg) Housing 451
Top Mount 410
Side Mount 335
Tool Diameter (mm) 75
Operating Pressure (bar) 120-150
Flow (l/min) 50-90
Frequency (bpm) 400-800
Carrier Weight (t) 6-9
HB15
Operating Weight(Kg) Housing 1007
Top Mount 866
Side Mount 761
Tool Diameter (mm) 100
Operating Pressure (bar) 150-170
Flow (l/min) 80-110
Frequency (bpm) 350-700
Carrier Weight (t) 10-15
HB20
Operating Weight(Kg) Housing 1693
Top Mount 1862
Side Mount 1669
Tool Diameter (mm) 135
Operating Pressure (bar) 170-210
Flow (l/min) 130-150
Frequency (bpm) 400-800
Carrier Weight (t) 18-25
HB30
Operating Weight(Kg) Housing 2263
Top Mount 2498
Side Mount 2340
Tool Diameter (mm) 150
Operating Pressure (bar) 180-220
Flow (l/min) 150-190
Frequency (bpm) 350-650
Carrier Weight (t) 28-25
HB40
Operating Weight(Kg) Housing 2796
Top Mount 3160
Side Mount 2840
Tool Diameter (mm) 160
Operating Pressure (bar) 190-230
Flow (l/min) 190-250
Frequency (bpm) 300-600
Carrier Weight (t) 35-42
